What type of gas spring do I need
Choosing the right gas spring for your application!
Back to Gas Struts & Cam-Stays

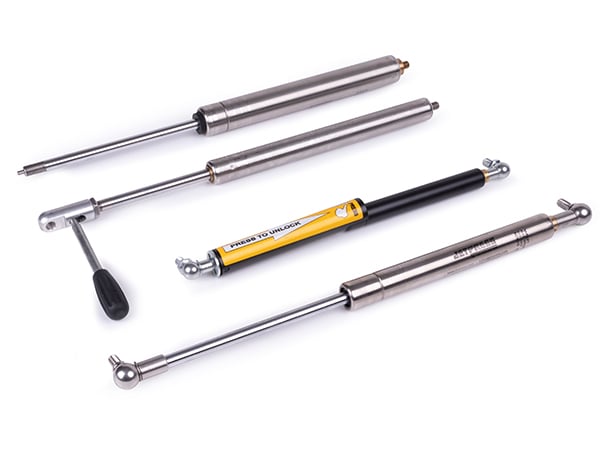

what is a gas spring / gas strut?
Gas Springs, also known as Gas Struts or Gas Shocks provide a direct support mechanism for safely lifting, lowering, positioning and counterbalancing different weights. They are used in a wide range of industries and applications for example, commercial vehicles, machine guards, enclosures, marine, agricultural equipment, caravans, leisure and sports.
How does a gas spring work?
Gas struts are closed systems that are charged with inert Nitrogen gas. As the rod is pushed into the tube the available gas volume is reduced and the gas contained in the spring is compressed. This increases the pressure (or resistance to force applied) and this compression of gas creates the spring-like behaviour. A small path through the piston enables the gas to flow across the piston and provides the means of controlling the speed of the spring as it is depressed and extended.
CUSTOM-MADE GAS STRUTS
We have a wide range of Gas Springs / Gas Struts for you to choose from below, however, we have can provide custom made Gas Springs to suit individual requirements.
If you require further information on custom-made Gas Strut for your application please download and complete this Gas Strut Application Enquiry Form.
Please return the form to webenquiries@jetpress.com.
STANDARD - Fixed force
Our popular standard fixed force Gas Spring and is available with a wide range of sizes and forces along with a choice of end connectors and brackets.
- Adjustable to any force within range
- No need to calculate force
- Charged to their maximum force during manufacture and can be adjusted after installation
- Gas can be gradually released via the Vari-Lift valve at the end of the tube
- Simple adjustment using standard tool supplied
- Ideal for prototyping and short production runs
- Ideal where application weights vary
- Available in stainless steel
STANDARD - Vari-Lift
An adjustable version of the Standard Gas Strut and is designed to be de-gassed whilst in position on the application. Vari-Lift is ideal for low volume applications where the required force is not known. Vari-Lift gas struts are also used for prototyping and initial set-up of new applications, prior to specifying a fixed-force gas strut for volume production.
- Adjustable to any force within range
- No need to calculate force
- Charged to their maximum force during manufacture and can be adjusted after installation
- Gas can be gradually released via the Vari-Lift valve at the end of the tube
- Simple adjustment using standard tool supplied
- Ideal for prototyping and short production runs
- Ideal where application weights vary
- Available in stainless steel

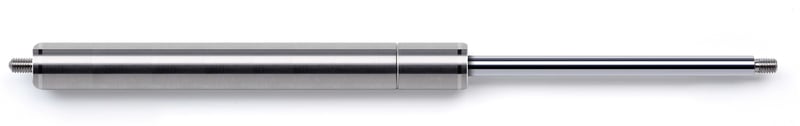

STANDARD - Stainless Steel
This range is made of 316L Stainless Steel and is ideal for use in harsh environment applications such as marine engine covers, doors, hatches, plus applications requiring high levels of cleanliness like the food, pharmaceutical and medical industries. Available in fixed force or Vari-Lift versions.
- High corrosion resistance especially in the marine environment
- 1000 hours salt spray tested
- 316L stainless steel rod & tube
- Custom designed to your application
- Top quality stainless steel rods

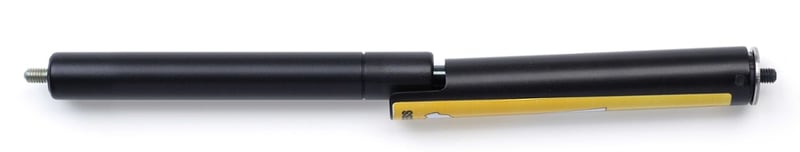

Econoloc
This Gas Spring is fitted with a safety locking shroud which automatically engages when the spring is fully extended and prevents the spring from compressing. This protects the operator from potential injury in the event of overload or misuse or loss of gas pressure. The Econoloc is manually released by applying thumb pressure to the shroud, allowing the gas spring to be compressed as normal. Ideal for applications such as truck hatches, construction machinery, switch gear and agricultural equipment where the added safety feature is required.
- Eliminates the need for separate safety rods in critical lift-assist operations
- Operates automatically
- Safe and easy to use
- Self-contained unit
- Maintenance free
- One Econoloc is fitted per pair of springs
- Available in fixed force or Vari-Lift versions

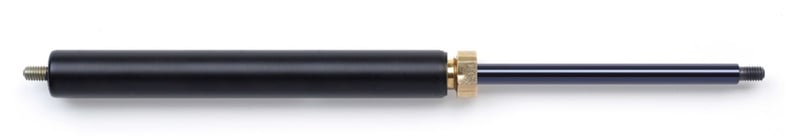

Stop & Stay
These multi-positional Gas Struts are fitted with an adjustable friction lock nut. As the nut is turned it increases friction on the rod and enables the spring to be set to hold the application in any position. Once the lock nut is set the operator will push or pull the application to another position and it will hold in this position exactly as it did in the initial one. These Gas Struts are typically used for low volume or prototyping purposes due to the requirement to set each spring individually. Stop & Stay Gas Springs are ideal on applications such as sunbeds, monitor arms, welding or acoustic hoods.
- Positional control
- Multi-positions holding of counter-balanced weights
- Choice of either adjustable or pre-set type friction control
- Available in stainless steel
- Safe and easy to operate
- Available in fixed force or Vari-Lift versions
Watch our video on stop & stay
Dampers
Cam‐Shock Dampers are self‐contained, maintenance‐free, hydraulic damping units, designed and engineered to absorb and control kinetic energy. Each Damper is designed specifically for the application it’s intended for and is available in a number of configurations including compression and extension damping, through dampers, gassed (emulsion) dampers and separator piston types.
- Self-contained unit
- Maintenance-free
- Compact design
- Durable and reliable
- Custom Damper design, sized to your application

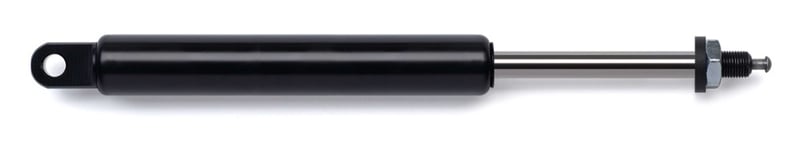

Blocklift
Blocklift Gas Springs allow the application to be locked in position at any point along the stroke length, this is achieved by using an internal piston arrangement actuated by a button at the end of the rod. Blocklift Gas Struts can be rigid or spring blocking type. Spring blocking allow slight movement under load whereas rigid types do not. Blocklift Gas Springs have many different uses where infinite control of the position of the application is required, for example seat height and back adjustment, steering columns and medical beds.
- Locks in any position on the length of stroke
- Single-handed operation
- Safe to use with easy positional control
- Self-contained unit and maintenance-free
- Available in carbon or 316L stainless steel
- UK manufactured
- Shrouded options available
- Wide range of release mechanism options
Cam-Stay
This is an easy-to-use manually operated telescopic multi-positional stay designed to support up to 135kg. With fixed holding position it provides quick and easy positioning and is ideally suited for a wide range of applications. The telescopic multi-positioning Cam-Stays are universal and can be mounted with the holding slots mounted up or down. Mounting of the stays can either be directly to your application through the holes or by mounting brackets. Examples of applications include medical bed and chair footrests.
Watch our video on cam-stay
- Easy Installation
- Maintenance free
- Supports up to 135kg
- Up to 10 Positions
- Life Expectancy: 20,000 Locks
ENQUIRE ABOUT THE CORRECT GAS STRUT FOR YOUR APPLICATION
Read more on What Size gas Spring Do I Need? and if you require further information on the correct Gas Strut for your application please download and complete this Gas Strut Application Enquiry Form.
Please return the form to webenquiries@jetpress.com, alternatively please speak to our sales team on +44 1623 551 800.
