Gas Strut Configurator

HOW TO CHOOSE THE CORRECT GAS SPRING

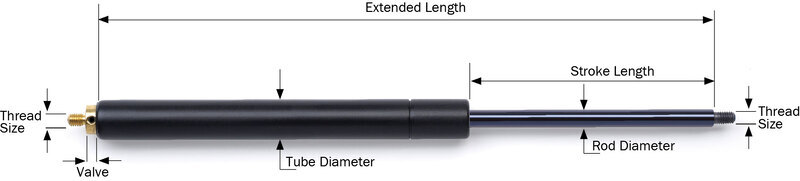

Selecting the correct Gas Strut depends on several key factors. The required force is determined by the weight of the object being lifted and the position of the mounting points. Stroke refers to the distance the rod travels between the fully compressed and fully extended positions, while extended length is the total centre-to-centre length of the Gas Strut when open.

The Gas Strut Configurator helps identify suitable JET PRESS stocked Gas Springs by allowing you to filter results based on these dimensions. By entering your required rod diameter, tube diameter,  stroke and extended length, the configurator will display the closest available matches.

If an exact option is not available, our team can help review your application and recommend a suitable solution.

Gas Strut Help and Guidance

If you need more information before selecting a Gas Strut, our guides explain how Gas Springs work and how to determine the correct specification for your application.

Visit our Gas Struts FAQs for answers to common questions about installation, sizing and applications.

If you are unsure where to start, our guide on How to Choose the Right Gas Strut explains the key factors to consider, including force, stroke and mounting positions.

To understand the technology behind these components, read How Does a Gas Spring or Gas Strut Work, which explains how gas pressure creates lifting force and controlled motion.

You can also learn more about selecting the correct specification in our articles:

• What Type of Gas Spring Do I Need – explains the different types of gas springs and their typical uses.
• What Size Gas Spring Do I Need – helps you determine the correct force, stroke and extended length for your application.

These resources can help you better understand your requirements before using the configurator or contacting our team for support.
