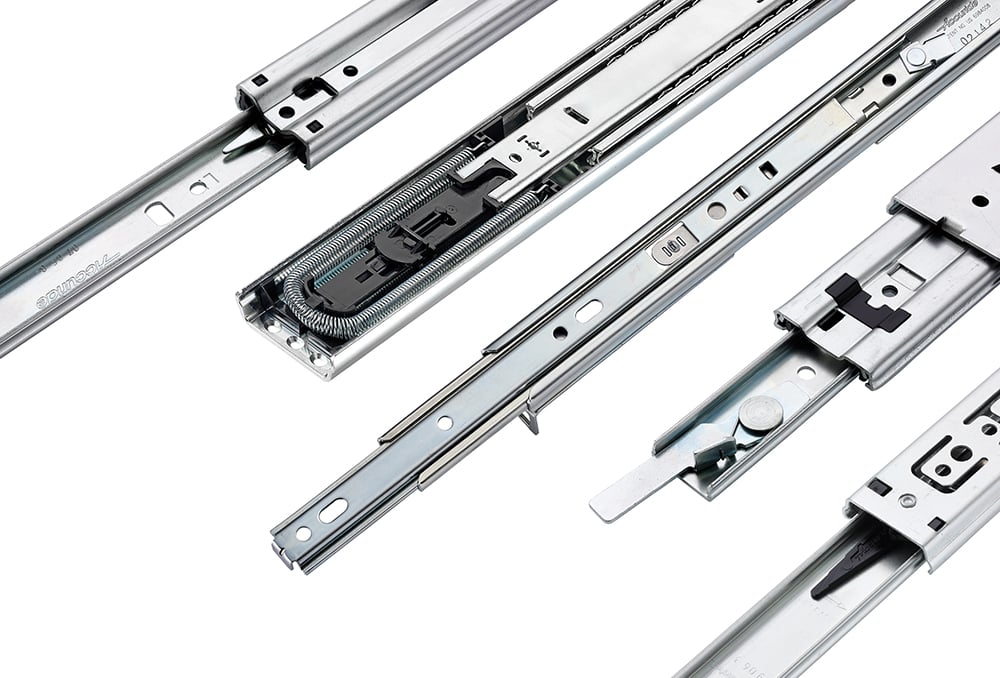

Accuride DRAWER SlideS

Accuride drawer slides are renowned for their exceptional quality and durability, making them a top choice for a wide range of applications. Designed to provide smooth and reliable motion, these slides are crafted with precision to ensure optimal performance in any setting. Whether used in industrial equipment, office furniture, or residential cabinetry, Accuride slides offer the functionality and versatility needed to enhance any project.

Whether you're looking for heavy-duty performance or sleek functionality, our extensive range provides the perfect blend of quality and innovation to meet your needs.

Explore the features below and enhance your projects with Accuride's trusted solutions.

Accuride Logo
Accuride Slide 9301 in situ

FEATURES

Anti-tilt

Interlocking slides used in filling cabinets ensuring the user can only open one drawer at a time eliminating tilt.

Cam Drawer Adjust

Allows minute adjustment to the drawer front for easy alignment. This is a standard feature on 2132 and 3832 series slides.

Dampened soft-close (EC)

Slows the closing action for a controlled and smooth operation eliminating slamming.

3832 Application4

Electronic locking

An electronic lock is integrated into the sliding hardware which secures drawers, doors and other openings.

Flat mounting

Horizontal mounting of a slide. See How to Select the correct Accuride Drawer Slide for a list of slides that can be flat mounted.

Front Disconnect

Allows the user the ability to disconnect the slide via a lever or push latch at the front of the slides.


VIDEOS

Hold-in and hold out

Keeps the slide open or closed until extra force is applied.

Lever Disconnect

Disconnect is achieved by releasing and internal lever and by pulling the drawer firmly through the resistance of the ball retainer.

Self-close (SC)

Slides include a spring attachment designed to close the drawers gently eliminating slamming and bounce back.


ADDITIONAL FEATURES

Lock-in and lock out

smooth forwards and backwards movement and within the slide’s own length.

Push latch disconnect

A latch is pressed to release the drawer and disconnect is achieved by pulling the drawer firmly through the resistance of the ball retainer.

pocket Cabinet door slides

A sliding door that slides along its length and disappears into a pocket between the side of the cabinet and the cabinet space

Shock blocks

These are hardened steel pins that provide an interference fit between the slide members to minimise the amplification of vibration and reduce the damaging effects of shock in the closed position. This is a standard feature on the 0522 series slide

Touch release (TR)

Slides open with gentle pressure to the front of the drawer eliminating the need for handles or knobs


Suffixes for standard features:

  • SC – self-close
  • HDSC – heavy duty self-close
  • DO – hold-out
  • TR – touch release
  • HDTR – heavy duty touch release
  • EC – easy close
  • RC – recirculating balls

mounting options

ENCLOSURE MOUNTING

Slides and bracket kits designed for use in electronic rack systems.

BAYONET MOUNTING

A cut-out in the side of the slides is used as a hook to fit into a corresponding slot in the chassis or drawer.

BRACKET MOUNTING

Optional brackets are available to simplify the mounting of slides which can be mounted vertically or horizontally depending on the application.

accuride-drawer-slides

View our range of Drawer Slides below where you can see the features of each slide. Click on the slide series in the table to view the full product information.

accuride-3732-drawer-slides-with-100-extension
accuride-3301-electronic-enclosure-drawer-slides
accuride-9308e4-heavy-duty-drawer-slides-with-lever
VIEW FEATURES OF  LIGHT DUTY DRAWER SLIDES (50KG)
VIEW FEATURES OF  MEDIUM DUTY DRAWER SLIDES (51-99KG)
VIEW FEATURES OF  HEAVY DUTY DRAWER SLIDES (100KG+)

Speak to our Experts

For help with selecting the best Accuride Drawer Slide for your application please call to speak to one of our experts on
+44 1623 551 800 or submit the form. Our team is always happy to help you find the best Accuride Drawer Slide for your application.
