Use the selector below to narrow the range by slide length and load rating. Each result shows the extension and any special function, such as soft close or lock in, lock out and links straight to the product page.

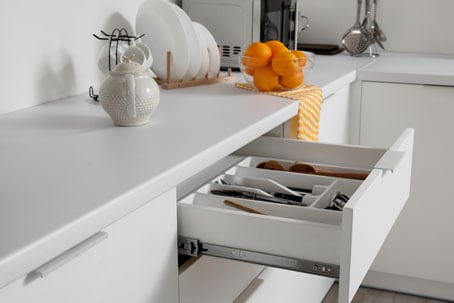

Soft close drawer runner in a kitchen drawer

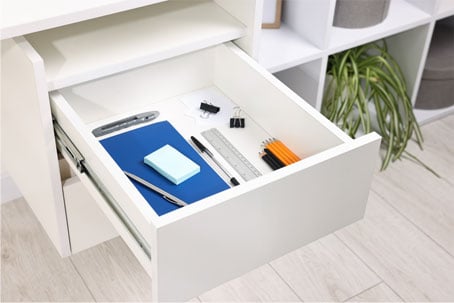

Soft close drawer runner in an office desk

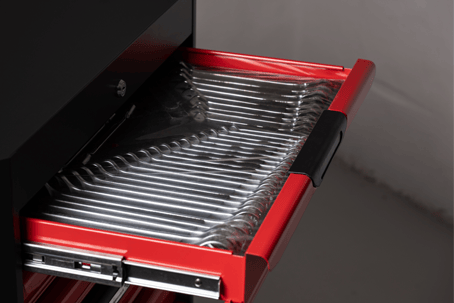

Soft close drawer runner in a tool chest
GS by JET PRESS

Drawer Runner Configurator

Choose the slide length and load rating you need and we will show the matching GS drawer runner.

Can't find the size you need? Talk to our sales team. For information, drawings or samples, we are here to help you.

Contact our sales team

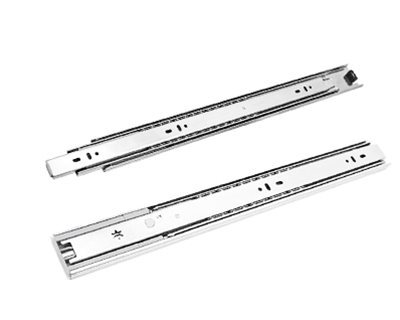

drawer slides

How to choose a drawer runner

Five things decide which drawer runner is right for your application.

  • Slide length: Slide length is the length of the runner when fully closed. Measure the internal depth of your cabinet and choose the longest slide that fits, as a longer slide gives better support and access to more of the drawer. If your exact size is not listed, the configurator shows close matches within 25mm.

  • Load rating: Load ratings are given for a pair of slides mounted on the sides of the drawer. Add the weight of the drawer itself to the weight of its contents, then allow a safety margin. Choose a higher rating if the drawer will face shock or vibration, such as in vehicles or mobile equipment, or if it is very wide. Mounting slides flat under a drawer greatly reduces their capacity, so speak to our team before mounting this way.

  • Extension: Full extension slides open the whole length of the drawer, giving clear access to the back. 3/4 extension slides open around three-quarters of the way and suit lighter, lower-cost furniture where full access is not needed.

  • Side space: Side-mounted runners need a gap between the drawer and the cabinet on each side, matched to the thickness of the slide. Too little space causes binding; too much leaves the drawer loose. Check the product drawing for the exact clearance.

  • Special functions: Some applications need more than a smooth slide. See the functions below.

Functions to suit your application

gs-function-soft-close

Soft close

The drawer slows and closes gently on its own, protecting contents and reducing noise. Ideal for kitchens, bedrooms and offices.

gs-function-push-to-open

Push to open

A light push opens the drawer, so you can design handle free fronts with a clean finish.

gs-function-two-way-travel

Two-way travel

The slide opens from either side of the cabinet, useful for islands, counters and shared workstations.

gs-function-lock-in-lock-out

Lock in, lock out

The drawer locks closed and locks open, keeping it secure during transport and steady while loading. Supplied as left and right hand parts.

Light, medium or heavy-duty?

Our GS range is grouped by load so you can quickly see where your application fits.



  Light duty Medium duty Heavy duty
Load rating (per pair) 15kg to 25kg 35kg to 45kg 68kg to 227kg
Lengths 182mm to 600mm 250mm to 650mm 254mm to 1524mm
Extension 3/4 and Full Full Full
Optional functions Soft close, two-way travel Soft close, push to open Lock in, Lock out
Typical uses Office, bedroom and kitchen furniture  Kitchen pan drawers, filing, retail fit-out

Tool storage, vehicle fit out, industrial cabinets, equipment racks
 Browse

Light duty range

  Medium duty range  Heavy duty range



Frequently asked questions

How do I measure for a drawer runner?

Measure the internal depth of the cabinet from the front edge to the back panel, then choose the longest slide length that fits within that depth. Slide length is always the closed length of the runner.

Is the load rating per slide or per pair?

Per pair. A pair of runners rated at 45kg will carry a drawer and contents weighing up to 45kg in total when side mounted.

What is the difference between drawer runners and drawer slides?

Nothing. They are two names for the same product. Drawer runner is more common in the UK and drawer slide in the US.

Why do lock in lock out slides have left and right-hand part numbers?

The locking lever sits on one side of the slide, so each drawer needs a left hand and a right hand runner. Order one of each per drawer.

Can I mount drawer runners under the drawer?

Our GS ball bearing runners are designed for side mounting. Mounting them flat greatly reduces the load they can carry, so contact our team before choosing this option.

Can I get a sample or CAD drawing?

Yes. We offer free samples and CAD drawings so you can test fit before you order. Request them from the product page or contact our team.

What if I cannot find the size I need?

The configurator shows close matches within 25mm of your chosen length. If none of those suit, our team can advise on alternatives from our wider range. We can also source runners with load ratings up to 2,400kgs to suit a huge range of applications.
